YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Product Categories

Shenzhen YZY Technology Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Brand Name : YZY

Model Number : YCXX7-8

Certification : CE、EMC

Place of Origin : Guangdong, China

MOQ : 100

Price : $145-165/pieces

Payment Terms : T/T

Supply Ability : 5K/Months

Delivery Time : 30-45Days

Packaging Details : BOX

Type : Monitor

Display Size : 10.1 inch

Supplier Type : Factory

Backlight Type : LED

Resolution : 1280*800

Brightness : 300

Operating Temperature : -10-60

Brand : BOE

Display Type : IPS

Mounting Type : Embedded

Operating System : Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13

Touch : USB interface multi-touch

Audio : Realtek ACL662 Audio Controller

I/O interface : HDMI/RJ45/VGA/DC/DVI

Outline Dimension : 283.7*186.2*59.9mm

Power supply : DC 12V

Power Input : AC 100-240V 50/60Hz (CCC, CE certified)

Contact Now

YCXX28-101 10.1Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

The YCXX28-101 10.1-inch industrial touch display features a 1280*800 resolution with wide temperature range, pressure-resistant multi-touch capabilities, and IP65 rating. This compact embedded monitor is built with a full aluminum alloy structure featuring fanless, fully enclosed design and low power consumption, specifically engineered for diverse environmental conditions to ensure long-term stable operation in harsh industrial settings.

Robust Construction for Industrial Applications

The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.

Key Features

RTD2483 Chip for high-performance processing
Full military-grade aluminum alloy construction for high temperature, corrosion, and pressure resistance
Fine workmanship and long service life suitable for harsh environments
Efficient heat dissipation design compatible with fan cooling
Simplified interior without redundant wiring for uninterrupted operation
Capacitive touch screen with intuitive operation and high durability
Compatible with resistive touch technology
Comprehensive input and output interfaces for connecting various equipment

Technical Specifications

Panel Parameters

Parameter	Specification
Size	10.1"
Resolution	1280*800
View Angle	85/85/85/85 (L/R/U/D)
Color	Chroma: 16.7M
Brightness	300 cd/m²
Contrast	600:1
Response Time	6.5 ms
Display Area	135.36(H) X216.576(V) mm
Pixel Pitch	0.1692(H) X 0.1692(V)

Screen & I/O Parameters

Parameter	Specification
Touch Type	Capacitive touch screen
Resolution	500DPI
Input Method	Handwriting or capacitive pen
Surface Hardness	7H
Calibration	Supported
HDMI	Support HDMI data output, up to 1080P
RJ45	Touch interface
VGA	1 port
DVI	1 port
Earphone Jack	3.5mm standard interface

Hardware Configuration

Component	Specification
CPU	RTD2483
System Language	English, Chinese
Video Input	PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions	AUTO, MENU, POWER, LEFT, RIGHT

Power Specifications

Parameter	Specification
DC Input	DC 12~24V
Power Consumption (Max)	15W
Power Input	AC 100-240V 50/60Hz (CCC, CE certified)
Power Output	DC12V / 4A

I/O Interface Panel

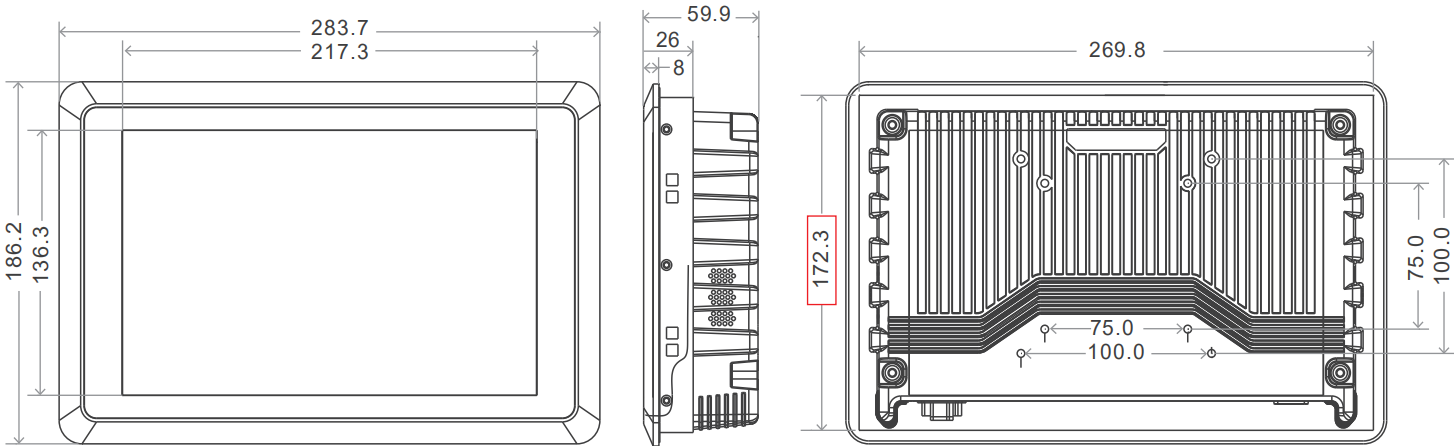

Dimensional Information

Overall Dimensions: 283.7*186.2*59.9mm(L*W*H)
